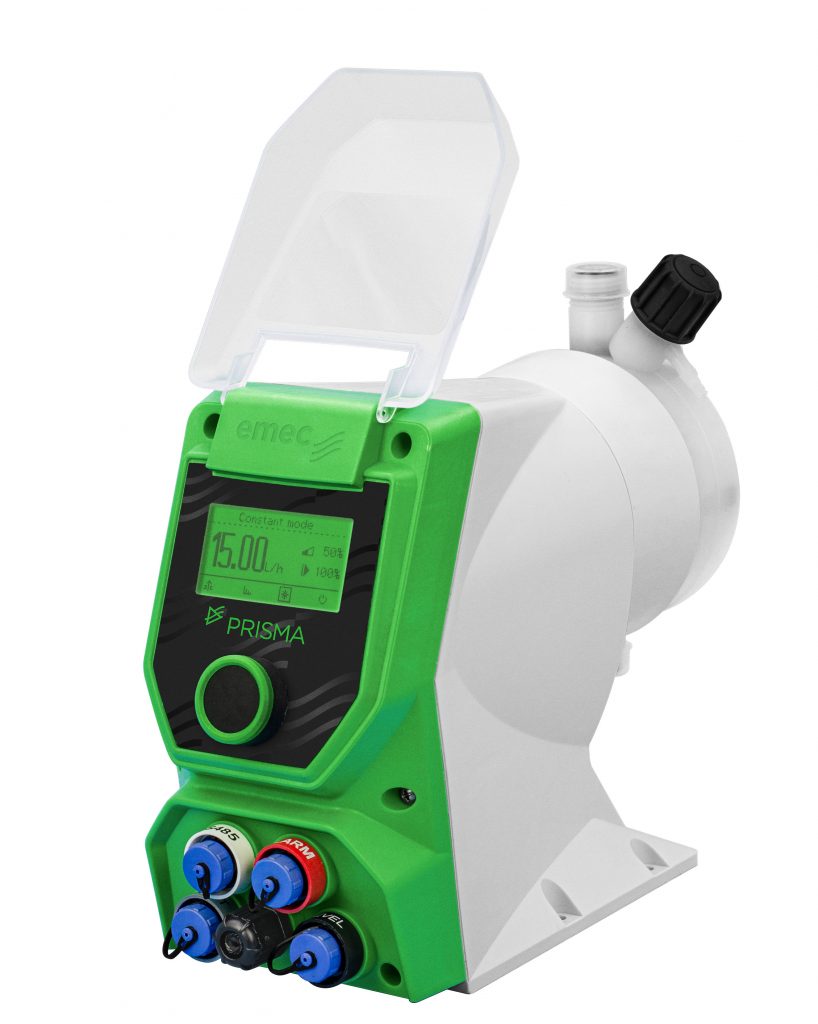

EMEC PRISMA Stepper Motor-Driven Diaphragm Pumps
EMEC PRISMA is the new range of stepper motor driven diaphragm dosing pumps featuring high turndown ratio and extremely precise dosing. The stepper motor and the multi-function software mean PRISMA pumps offer complete control over dosing speeds and working modes, as well as great flexibility and repeatability, meeting even complex application needs.
PRISMA pumps are foot mounted, with multi-colour status display and encoder knob for easy programming and setup.
PRISMA pumps are available with PVDF, PMMA or stainless heads.
Features:
- microprocessor controlled stepper motor for accurate and smooth dosing
- turndown ratio 4800:1
- slow suction modes for viscous media
- double ball check valve
- colour LCD status display
- multi-function operating modes (constant, ppm, %, mlq, pause-work, weekly, pulse, mA, Volt and batch)
- BLUETOOTH, WIFI, 4-20mA, MODBUS options available
Pump Sizes
| PRISMA Stepper- Motor Pumps | ||||
|---|---|---|---|---|
| Model | Pressure Bar | Flow l/h | Suction Tube ID x OD | Discharge Tube PVDF – ID x OD |
| PRISMA 2502 | 25 | 2 | 4 x 6 | 4 x 6 |
| PRISMA 2005 | 20 | 5 | 4 x 6 | 4 x 6 |
| PRISMA 1607.5 | 16 | 7.5 | 4 x 6 | 4 x 6 |
| PRISMA 1013 | 10 | 13 | 6 x 8 | 6 x 8 |
| PRISMA 0720 | 7 | 20 | 6 x 8 | 6 x 8 |
| PRISMA 0528 | 5 | 28 | 8 x 12 | 8 x 10 |
| PRISMA 0450 | 4 | 50 | 8 x 12 | 8 x 10 |
| PRISMA 0280 | 2 | 80 | 8 x 12 | 8 x 10 |
Datasheet
Catalogue Section
Info Sheet
For more information please contact us.
