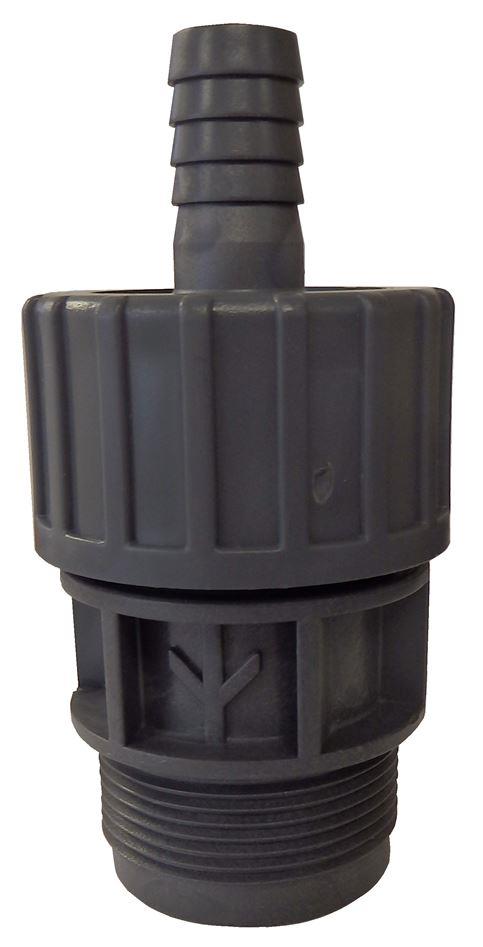

EMEC 1-1/2″ Injection Valves
1 – 1/2″ valves feature 1 – 1/2 ” BSP thread. All springs Hastelloy C 0.3 Bar. Other spring settings on request. PVC up to 50°C, PP up to 40°C.
Part number | Tube Connection ID (mm) | Valve Body | Valve Seals | |
073.1527.1 | 18 | PVC | Viton | ![]() |
073.1597.1 | 18 | PP | Viton | |
073.1529.1 | 32 | PVC | Viton | |
073.1530.1 | 32 | PVC | EPDM |
